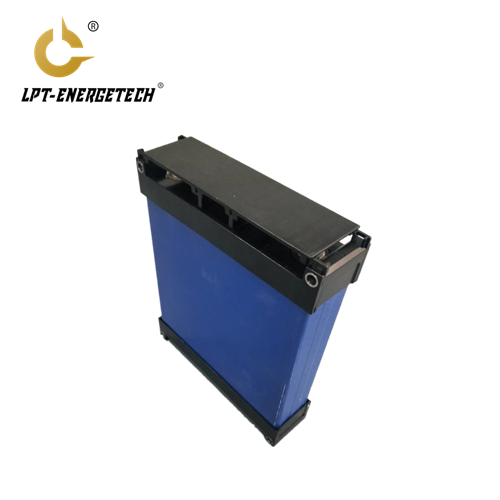

6000 Cycles LiFePo4 Prismatic 3.2V 150Ah Battery Cell
Cell weight
3.12 kg±0.05kg
N.A.
Dimension
W*L*H=(44.7±0.5)*(174.2
±0.5)*(184.6±0.5)mm3
Cycle life
After 4000cycles, the discharge
capacity >=80%
Nominal charge current: 0.5C (25℃±5℃)
Maximum continuous charge current: 1C (25℃±5℃)
Charge cut-off voltage: 3.65V (25℃±5℃)
Standard charging method: 0.5C (CC-CV 1C to limited charge voltage at 0.05C)
Nominal charge temp: 25±5℃ (Cell temp)
Temp range of charging: 0℃~55℃
Nominal discharge current: 1C (25℃±5℃)
Maximum continuous discharge current: 2C (25℃±5℃)
Maximum pulse current: 400A
Discharge cut-off voltage: 2.5V (25℃±5℃)
Nominal discharge temp: 25±5℃ (Cell temp)
Temp range of charging: -20℃~55℃
|
Rated capacity |
150Ah |
1C (Discharge current:1C) |
|
Minimum capacity |
150Ah |
Discharge current:1C |
|
Nominal voltage |
3.2V |
— |
|
Operating voltage |
2.5V-3.65V 2.0V-3.65V |
T≤0℃. T≤0℃.
|
|
AC IMP（1KHz） |
≤0.35（mΩ） |
Fresh cell |
|
Average AC IMP（1KHz） |
0.3（mΩ） |
Fresh cell |
|
Self-discharge rate/month |
≤4% |
25℃±5 |
|
Delivery SOC |
30%SOC |
N.A. |
